Chapter III 程序的转换及机器级表示

Chapter 3.1 程序转换概述#

计算机硬件只能识别机器语言。用汇编语言或高级语言编写的源代码，需要转换成机器指令才能运行。

一般先用编译器将高级语言源代码转为汇编语言目标代码，再用汇编程序将汇编语言源代码转为机器语言目标代码。

机器指令及汇编指令#

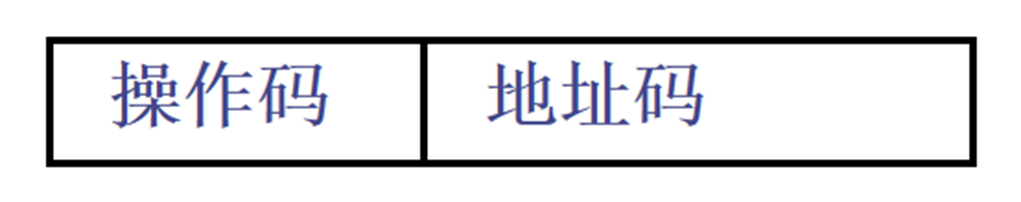

机器指令的一般形式为：

操作码：数据传送、加减运算等
地址码：操作数和运算结果的存放位置

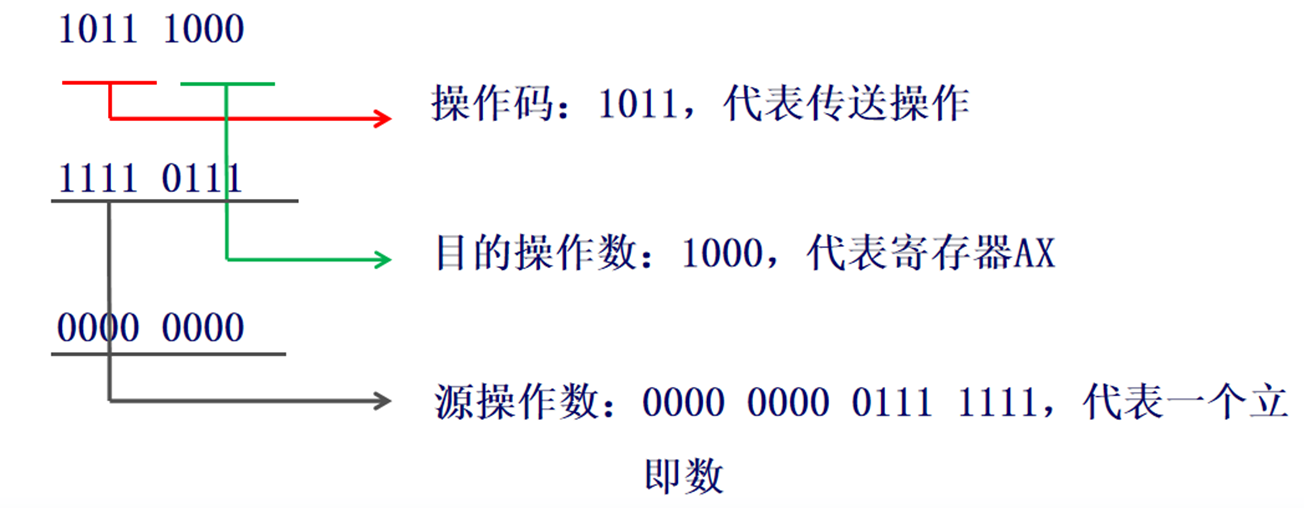

例子一条机器指令占 3 个字节（24位），其内容解析如下

缺点这玩意缺点太明显了，略去。

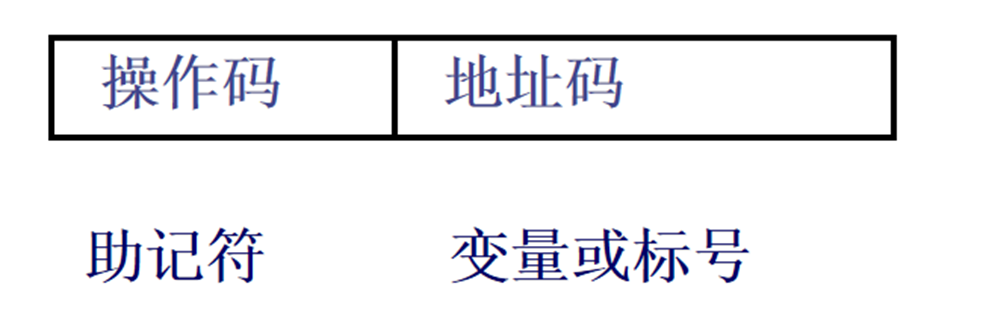

改进方案 将机器语言符号化

这样就诞生了汇编语言。例如上面的机器指令可以被写为：

操作码		  地址码
B8			F7 00
MOV 		AX, 0F7H
// 对应的汇编指令
mov	$0xf7, %ax

plaintext

指令集体系结构#

ISA 是计算机系统最重要的抽象层，将物力上的计算机硬件抽象成一个逻辑上的虚拟计算机，也被称为机器语言级虚拟机。

ISA 定义了机器语言级虚拟机的属性和功能特性，主要包括：

可执行的指令的集合
可接受的操作数类型
寄存器组的结构
存储空间
大端存放还是小端存放
寻址方式
指令执行的控制方式

生成机器代码的过程#

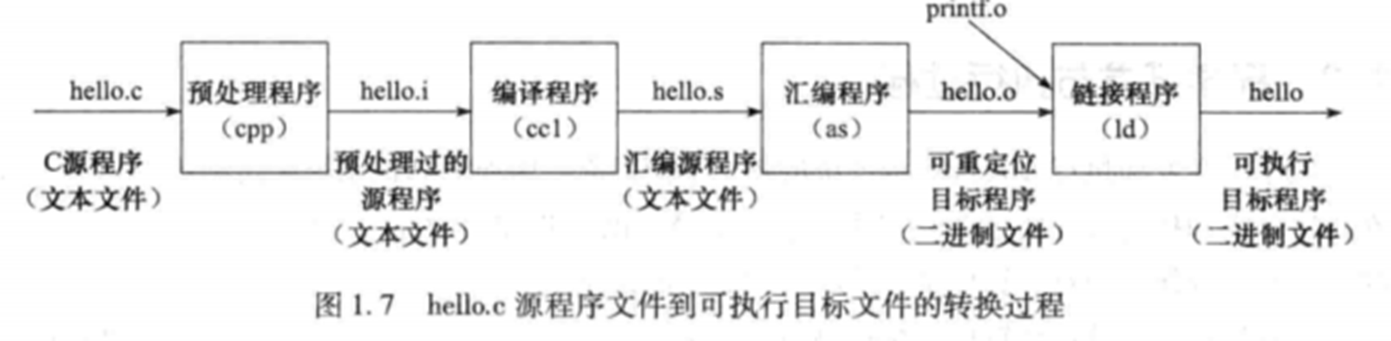

一个程序的完整生成过程如下：

预处理：

gcc -E -o hello.i hello.c

plaintext

编译：

gcc -S -o hello.s hello.i

plaintext

汇编：

gcc -c -o hello.o hello.s

plaintext

链接：

gcc -o hello hello.o

plaintext

一个更简单的生成方法如下：

gcc -o hello hello.c

plaintext

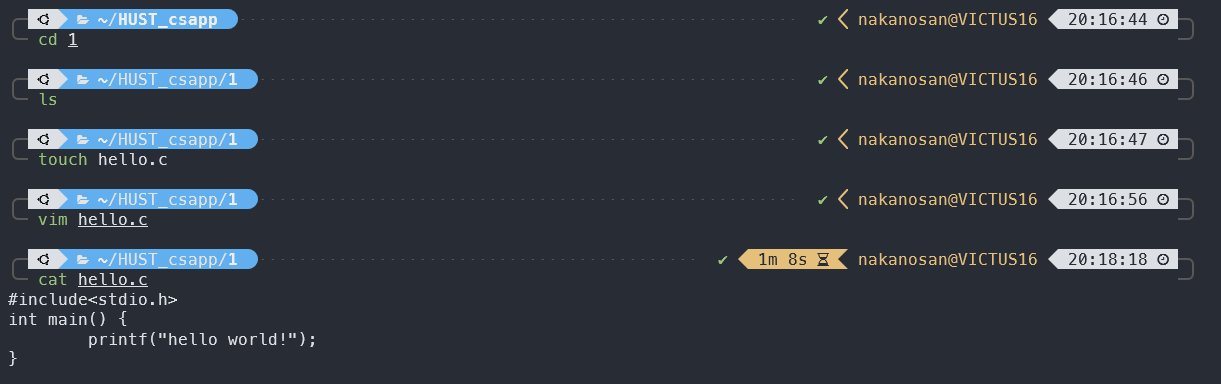

创建了一个 hello.c

// hello.c
#include<stdio.h>
int main() {
    printf("hello world!");
}

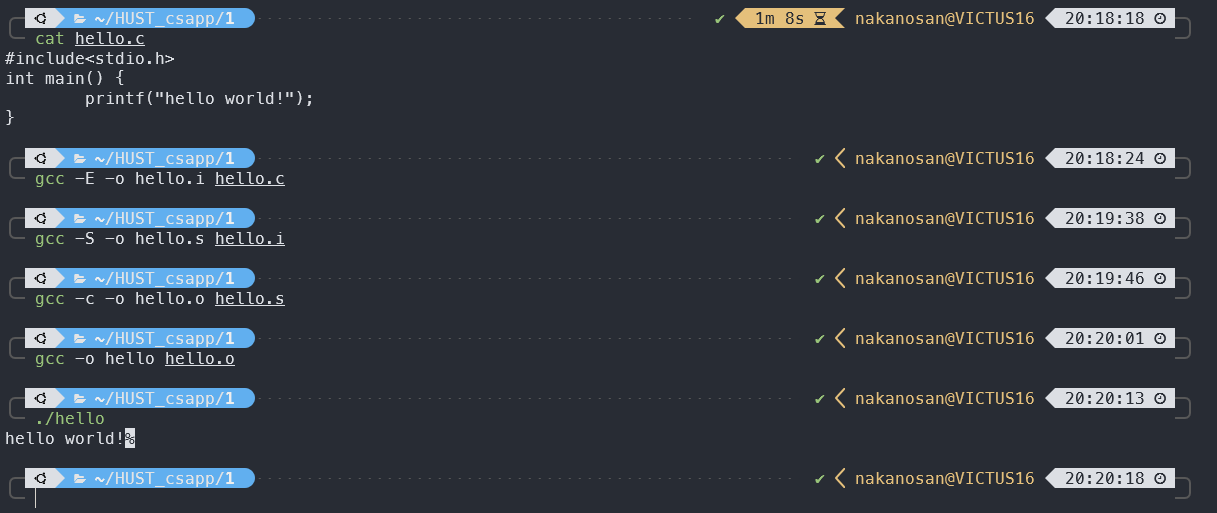

之后按顺序执行这几个命令：

可以看到程序运行成功。

其中几个文件的内容：（.i 文件内容太长，放在最后了）

// hello.o
// 这个文件是机器可以读懂的二进制文件而非文本文件。

// hello.s
	.file	"hello.c"
	.text
	.section	.rodata
.LC0:
	.string	"hello world!"
	.text
	.globl	main
	.type	main, @function
main:
.LFB0:
	.cfi_startproc
	endbr64
	pushq	%rbp
	.cfi_def_cfa_offset 16
	.cfi_offset 6, -16
	movq	%rsp, %rbp
	.cfi_def_cfa_register 6
	leaq	.LC0(%rip), %rax
	movq	%rax, %rdi
	movl	$0, %eax
	call	printf@PLT
	movl	$0, %eax
	popq	%rbp
	.cfi_def_cfa 7, 8
	ret
	.cfi_endproc
.LFE0:
	.size	main, .-main
	.ident	"GCC: (Ubuntu 11.4.0-1ubuntu1~22.04.2) 11.4.0"
	.section	.note.GNU-stack,"",@progbits
	.section	.note.gnu.property,"a"
	.align 8
	.long	1f - 0f
	.long	4f - 1f
	.long	5
0:
	.string	"GNU"
1:
	.align 8
	.long	0xc0000002
	.long	3f - 2f
2:
	.long	0x3
3:
	.align 8
4:

// hello.i
